Характеристики

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops

Showroom Location: Turkey, Germany, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Spain

Condition: New

Usage: Nitrogen

Weight: 800 KG

Warranty: 1 Year

Key Selling Points: Famous brand PLC

Marketing Type: Hot Product 2019

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: PLC, Pressure vessel, Screw Air Compressor, Air Receive Tank, Air Dryer & Precision Filters, Gaseous Nitrogen Generator, Nitrogen Receive Tank, Liquid Nitrogen Machine, Liquid Nitrogen Tank

Product Name: Psa Nitrogen Generator

Nitrogen Purity: 99.5-99.9995%

Feed Air Pressure: 0.8-1.0Mpa

Nitrogen Pressure: 0.1-0.7Mpa

Dimension: Customize

Technology: Pressure Swing Adsorbtion (Psa)

Material: Carbon Steel

Capacity: 3~200nm3/H

Noise Level: Low

Voltage: 220V

Основная информация

Оплата и доставка Условия

Packaging Details: Wooden Package

Supply Ability: 500 Set/Sets per Year

Характер продукции

Nitrogen Plant China Manufacturer Psa Nitrogen Generator for Making Nitrogen Gas Purpose

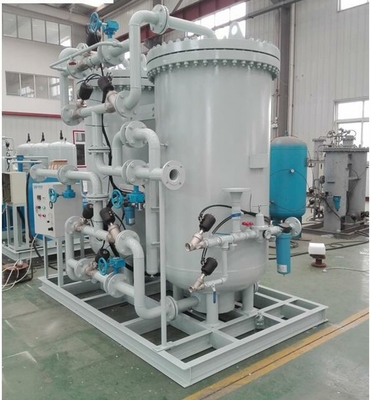

PSA Nitrogen Generator

Nitrogen generators with cylinder filling produce gaseous Nitrogen from compressed air on-site and offer a cost-effective,
reliable and safe alternative to traditional Nitrogen gas supplies such as cylinders or cryogenic liquid. Nitrogen generators with cylinder filling are available in standard models with capacity ranging from 0.27m3/hr to 60m3/hr at 99.9999% purity with cylinder filling pressures up to 200 Bars. The design is made for round the clock 24/7 operation. Each generator is equipped with automatic start & stop function, enabling the generator to start and stop automatically according to the Cylinder consumption. Remark: More models and specifications please contact us.

PSA (Pressure Swing Adsorption) is an advanced gas separation technology, which has an irreplaceable position in the field of current on-site gas supply. PSA nitrogen generator with cylinder filling use compressed air as raw materials and carbon molecular sieves(CMS) as adsorbent to get high purity nitrogen based on the principle, which is pressure swing adsorption under normal temperature. In general, use two parallel adsorption towers, which are automatically running with pneumatic valves controlled by PLC, altermnatively adsorb under pressure and regenerate without pressure, to separate nitrogen and oxygen, and get final required high purity nitrogen gas continuously.

Products Description

Flow Chart

Working principle

After being compressed by an air compressor, the raw air enters the air storage tank after dust removal, oil removal and drying,and then enters the A adsorption tower through the A intake valve. At this time, the tower pressure rises, the nitrogen molecules in the compressed air are adsorbed by the zeolite molecular sieve, and the unadsorbed oxygen passes through the adsorption bed and enters the oxygen buffer tank through the outlet valve. This process is called adsorption. After the adsorption process is over, the adsorption tower A and the adsorption tower B are connected through a pressure equalizing valve to balance the pressure of the two towers. This process is called equalizing pressure. After the pressure equalization is over, the compressed air passes through the B intake valve and enters the B adsorption tower, and the above adsorption process is repeated. At the same time, the oxygen adsorbed by the molecular sieve in the adsorption tower A is decompressed and released into the atmosphere through the exhaust valve A. This process is called desorption, and the saturated molecular sieve is adsorbed and regenerated. Similarly, the right tower is also desorbed when tower A is adsorbing. After the adsorption of Tower B is completed, it will also enter the pressure equalization process, and then switch to the adsorption of Tower A, so that the cycle alternates and continuously produces oxygen.
The above-mentioned basic process steps are all automatically controlled by PLC and automatic switching valve.

Product Paramenters

Model	Purity （%）	Capacity （m³/h）	Air consumption(m³/min）	Dimensions（mm）L×W×H
HYN-10	99	10	0.5	1300×1150×1600
			99.5		0.59	1350×1170×1600
			99.9		0.75	1400×1180×1670
			99.99		1.0	1480×1220×1800
			99.999		1.3	2000×1450×1900
HYN-20	99	20	0.9	1400×1180×1670
			99.5		1.0	1450×1200×1700
			99.9		1.4	1480×1220×1800
			99.99		2.0	2050×1450×1850
			99.999		3.0	2100×1500×2150
HYN-30	99	30	1.4	1400×1180×1670
			99.5		1.5	1480×1220×1800
			99.9		2.1	2050×1450×1850
			99.99		2.8	2100×1500×2150
			99.999		4.0	2500×1700×2450
HYN-40	99	40	1.8	1900×1400×1800
			99.5		2.0	2000×1450×1900
			99.9		2.8	2100×1500×2050
			99.99		3.7	2200×1500×2350
			99.999		6.0	2600×1800×2550
HYN-50	99	50	2.1	2000×1500×1900
			99.5		2.5	2050×1450×1850
			99.9		3.3	2100×1500×2250
			99.99		4.7	2500×1700×2500
			99.999		7.5	2700×1800×2600
HYN-60	99	60	2.8	2050×1450×1850
			99.5		3.0	2050×1500×2100
			99.9		4.2	2200×1500×2250
			99.99		5.5	2550×1800×2600
			99.999		9.0	2750×1850×2700
HYN-80	99	80	3.7	2100×1500×2000
			99.5		4.0	2100×1500×2150
			99.9		5.5	2500×1700×2550
			99.99		7.5	2700×1800×2600
			99.999		12.0	3200×2200×2800
HYN-100	99	100	4.6	2100×1500×2150
			99.5		5.0	2200×1500×2350
			99.9		7.0	2650×1800×2700
			99.99		9.3	2750×1850×2750
			99.999		15.0	3350×2500×2800
HYN-150	99	150	7.0	2150×1470×2400
			99.5		7.5	2550×1800×2600
			99.9		10.5	2750×1850×2750
			99.99		14.0	3300×2500×2750
			99.999		22.5	3500×3000×2900
HYN-200	99	200	9.3	2600×1800×2550
			99.5		10.0	2700×1800×2600
			99.9		14.0	3300×2500×2800
			99.99		18.7	3500×2700×2900
			99.999		30.0	3600×2900×2900

Manufacturing Technique

1. Equipped with air pretreatment equipment such as refrigeration dryer, which effectively guarantees the service life of
molecular sieve.
2. Using high-quality pneumatic valve, short opening and closing time, no leakage, service life of more than 3 million times,
meeting the requirements of frequent use of pressure swing adsorption process, and high reliability.
3. Using PLC control, it can realize fully automatic operation, convenient maintenance, stable performance and low failure rate.
4. The gas production and purity can be adjusted within an appropriate range.
5. Continuously optimized process design, combined with the selection of new molecular sieves, minimizes energy consumption and
capital investment.
6. The device is assembled in a complete set to reduce on-site installation time and ensure quick and easy on-site installation.
7. Compact structure design, less floor space.

PACKAGING&SHIPPING

Recommend Products

Company Profile

Certifications

FAQ

1.Are you manufacturer or trade company : We are the professional manufacturer of oxygen plant with CE and ISO certification.

2.Any guarantee for your products? All of our products with 12months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!

3.How to get a prompt quotation of Nitrogen Generator? 1) Nitrogen flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours)) 2) Nitrogen purity: _____% 3) Nitrogen discharge pressure: _____Bar 4) Voltages and Frequency : ______V/PH/HZ 5）Altitude : ____ 6) Application: ____

4.What is the configuration of oxygen generation system ? --Air compressor; --Compressed air purification components; --Air buffer tank; --oxygen generator; --Oxygen tank; --Oxygen Sterile filters; --Oxygen Compressor; --Refilling Station; Customized is accepted .

5.Do u support OEM/ODM service? Yes,we do support.
